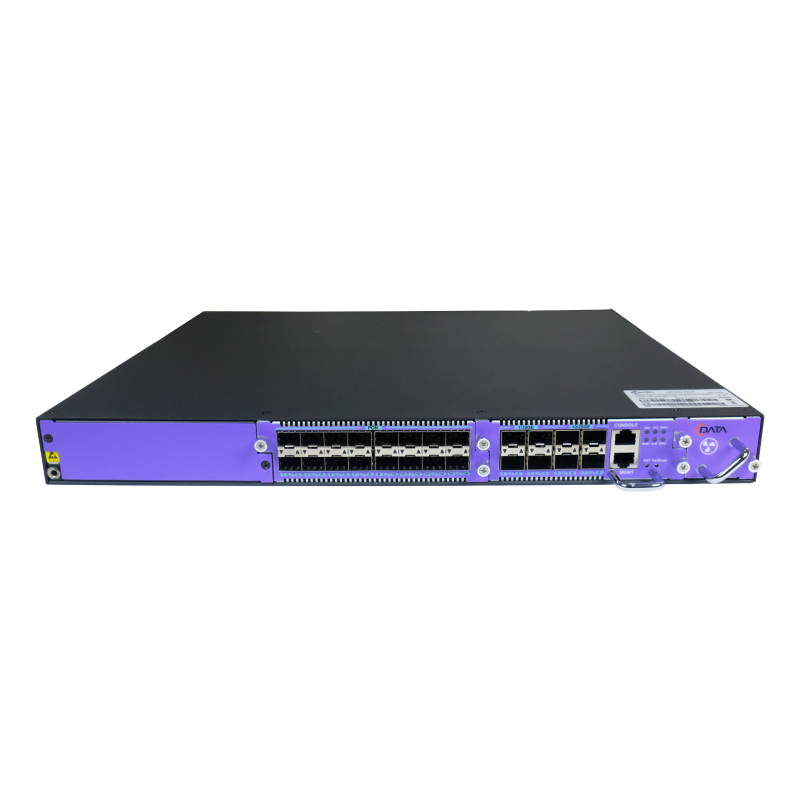

C-DATA 16PON 4SFP+ 4SFP28 Expandable GPON OLT (FD1700S)
Rp49.450.500
Deskripsi
| Model | FD1700S-PDX0 |
| Uplink Port | 4*1G(SFP)/10G SFP+ |
| 4*10G(SFP+)/25G(SFP28) | |
| PON Port | 16* GPON |
| Physical interface : SFP slot | |
| Interface type : ITU-TG.984.2 Class B+/Class C+ | |
| Max splitting ratio : GPON: 1:128 | |
| Management Port | 1* 100/1000BASE-Tx out-band Ethernet port |
| 1* CONSOLE local management port | |
| Transmission distance | 20KM |
| Port rate | GPON: |
| Downstream: 2.5Gbps | |
| Upstream: 1.25Gbps | |
| Wavelength | Forwarding: 1490nm |
| Receiving: 1310nm | |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Light transmission power | Class B+ : +1.5~+5dBm |
| Class C+ : +3 ~ +7dBm | |
| Receiving sensitivity | Class B+ : -28dBm |
| Class C+ : -30dBm | |
| Saturation power | Class B+ : -8dBm |
| Class C+ : -12dBm | |
| Backplane Bandwidth | 400G |
| Power supply | AC : 100V ~ 240V?47~63Hz |
| DC : -40V ~ -72V | |
| Working temperature | -15 ~ 50 C |
| Storage temperature | -40 ~ 85 C |
| Ambient humidity | 5 ~ 90% (Non-condensing) |
