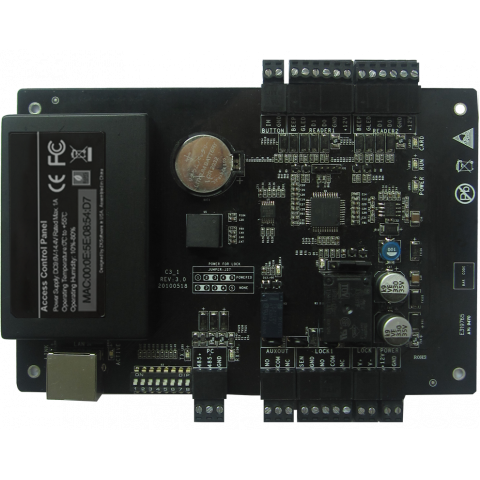

ZKTeco C3-100 IP-based Door Access Control Panel
Rp3.851.000
Deskripsi
Specification
| Jumlah pintu yang dapat dikontrol | 1 Pintu |
| Jumlah reader yang didukung | 2 |
| Tipe reader yang didukung | 26-bit Wiegand, Untuk lainnya berdasarkan permintaan |
| Jumlah Input | 2 (unit pintu keluar dan status pintu, AUX) |
| Jumlah Output | 2 (1- dari relay C untuk kunci dan 1-dari relay C untuk output AUX) |
| Kapasitas Pemegang Kartu | 30,000 |
| Kapasitas pencatatan Kejadian | 100,000 |
| Berat | 7.4lbs (3.35kg) |
| Komunikasi | TCP/IP, RS-485, dan Wi-Fi (pilihan) |
| Elemen Pelingkup | Dilapisi bubuk alumunium |
| Pemasangan | Di Dinding |
| Power Supply yang direkomendasikan | 12V DC, 1.5A |
| Dimensi (hanya Bundel) | 15in.*3.15in.*11in. |
| 380mm(L) * 80mm(W) * 280mm(H) | |
| Dimensi (hanya board) | 6.3in.*4.17in. |
| (160mm*106mm) |
